installation guide

Sapphire Spas thanks you for supporting Australian made products and wishes you the best in your spa experience.

before you fill your spa

attaching your hardcover clips

Please attach hardcover clips as shown below:

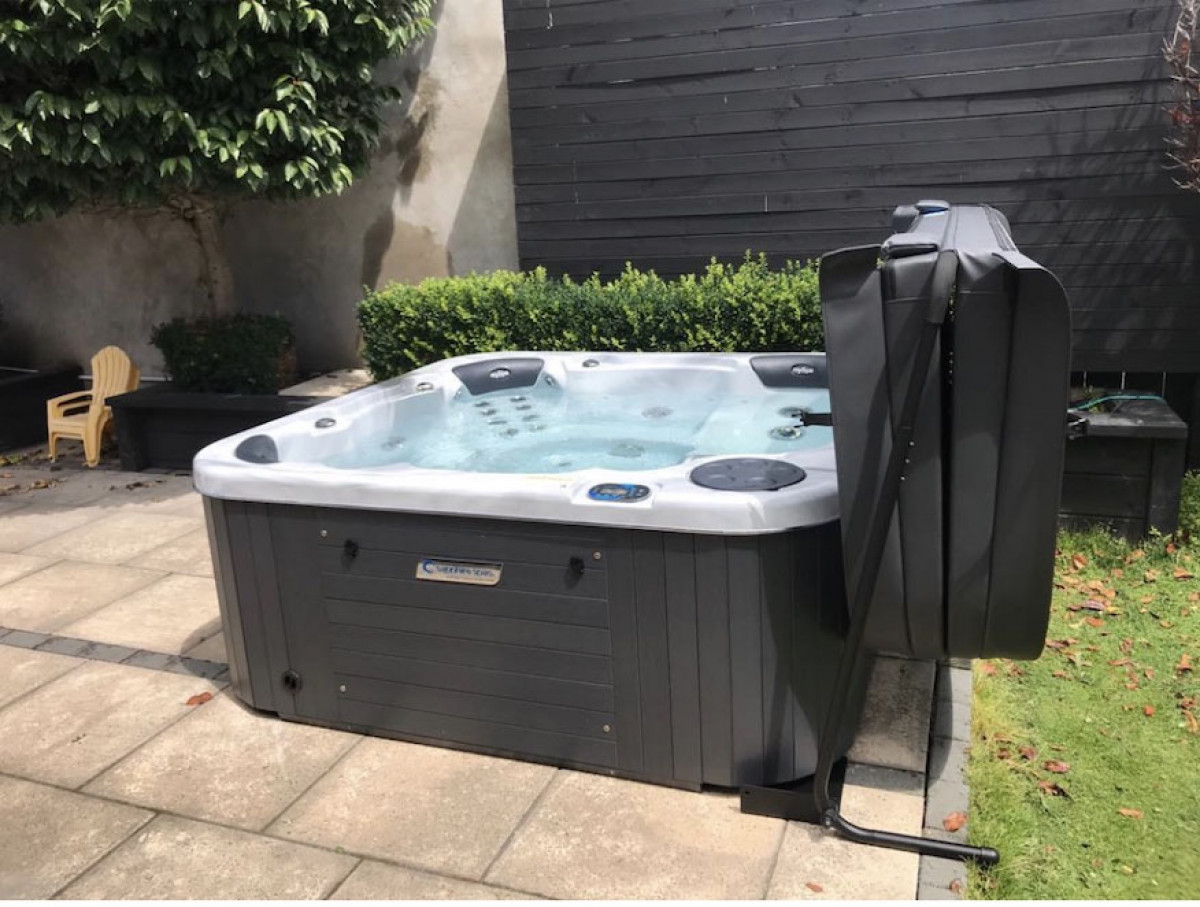

Side view of hardcover clips & lifter installed. Please install hardcover lifter before filling your spa in case you need to move it away from nearby walls etc (blizzard cover shown in below image)



These CAD drawings of our hardcovers, to suit our various spa and swim spa models, will help you to locate and attach your hardcover clips



2 PIECE Heatlock+ HardcoverHinge.Rugged UVresistant stitching.Tapered from 100 - 60mm to allow thewater to run off and stop pooling.HandleChildprooflocking catches.Lip / skirt6 StrapsRigid high Rvalue polystyrene.Aluminium channel foradded strength.Heat seal at each end.Durable, high quality UVresistant marine gradevinyl.

3 PIECE Heatlock+ HardcoverHinge.Rugged UVresistant stitching.tapered from 100 - 80mm to allow thewater to run off and stop pooling.HandleChildprooflocking catches.Lip / skirt8 StrapsRigid high Rvalue polystyrene.Aluminium channel foradded strength.Heat seal at each end.Durable, high quality UVresistant marine grade vinyl.tapered from 100 - 60mmtapered from 80 - 60mm

4 PIECE Heatlock+ HardcoverTapered from 120 - 90mmRugged UVresistant stitching.Tapered from 90 - 60mm to allow thewater to run off and stop pooling.HandleChildprooflocking catches.Lip / skirt10 StrapsRigid high Rvalue polystyrene.Aluminium channel foradded strength.Heat seal at each end.Durable, high quality UVresistant marine grade vinyl.Tapered from 120 - 90mmTapered from 90 - 60mm

6 PIECE Heatlock+ HardcoverTapered from 100 - 80mm.Rugged UVresistant stitching.Tapered from 120 - 100mm to allow thewater to run off and stop pooling.HandleChildprooflocking catches.Lip / skirt14 StrapsRigid high Rvalue polystyrene.Aluminium channel foradded strength.Heat seal at each end.Durable, high quality UVresistant marine grade vinyl.Tapered from 80 - 60mm.Tapered from 120 - 100mm.Tapered from 100 - 80mm.Tapered from 80 - 60mm.

Blizzard Hardcover - upgrade onlyHinge.Rugged UVresistant stitching.Tapered from 130 - 100mm to allow thewater to run off and stop pooling.HandlesLip / skirtChildproof locking catches.8 StrapsRigid high Rvalue polystyrene.Aluminium channel foradded strength.Heat seal along full width of cover.Durable, high quality UVresistant marine gradevinyl.





electrical trade information

Prior to installation of your spa, your electrician will need to arrange adequate power supply for your spa. You can find details of the power requirements in the 'product specifications' table on the website page for your chosen spa model (search for your spa model using the 'ranges' tab in the top menu bar. Please note, we will always quote only the minimum power requirement.

example: 32amp power is required for the premium model below



Electrical conduit access to guide your electrician on where to connect power (based on myExtravagance spa pool as a guide only for all spa models)



Provide this document to your electrician when they're connecting your spa to the power supply.

Spanet SV Series Control WIRING DIAGRAM (1.1 MB)

heat&cool pump installation

If you have purchased an add-on heat&cool pump with your spa, refer to this information for installation & operation

The heat&cool pump will be supplied with a data and power cable already fitted, it simply needs to be connected to the Spanet SV spa control by referring to the SV Series Heat Pump Manual supplied with your spa.

A separate power source for the heat pump is not required.

Spanet SV Series HEAT PUMP Manual (1.2 MB)



This video takes you through the procedure of fitting a heat&cool pump to your spa pool. You may connect this yourself or your local store can carry out this work at handover.

Fitting The Heat Pump

Heat&cool pump installation : stable concrete base / adequate air flow for fan output / close to swim spa for most efficient heating

Once connected, the SV controller will automatically detect the heat pump and enable its operation. Operation and use of the heat&cool pump is covered in a dedicated section of the manual provided

Thank you for taking time to read our Owners Handbook
×
